DESCRIPTION

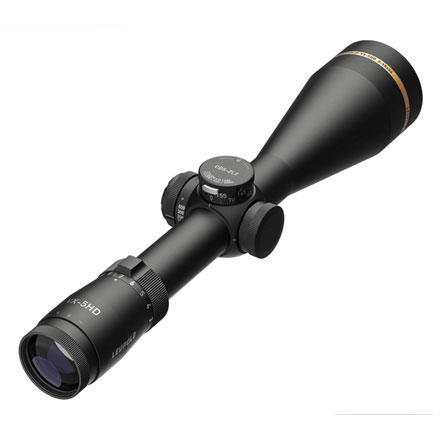

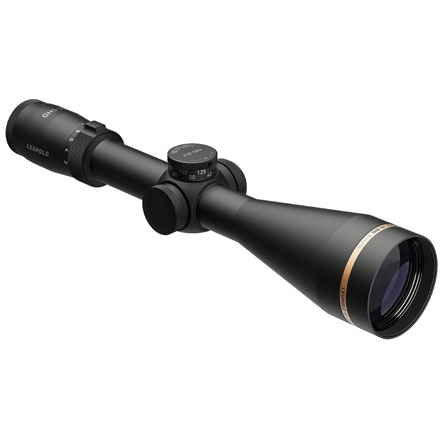

VX-5 HD 3-15 x 56mm 30mm Tube CDS-ZL2 Side Focus Metric Illum FireDot 4 Fine
by Leupold

Let there be light. The VX®-5HD 3-15x56mm gives you all the flexibility of its 44mm counterpart but with the 56mm objective bell, so it maximizes as much exit pupil light as your eye can handle. From the mountains to the open plains to range day, this scope has the ability to dominate. Plus, it comes with our proprietary Firedot® illumination to give you a bright, intuitive aiming point that won't get lost in low-light conditions. The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers. As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

Features:

• 5:1 Zoom Ratio
• High Definition
• Guard-ion
• CDS-ZL2 Elevation Dial
• Side Focus
• Rear (second) focal plane
• Illuminated
• Motion Sensor Technology (MST)
• Waterproof, Fogproof, & Shockproof

Specifications:

• Adjustable Parallax: Side Focus
• Battery Type: CR2032
• Daylight Bright Illumination: Yes
• Elevation Adjustment Type: CDS-ZL2
• Locking Dial: Yes
• Reticle Focal Plane: Second Focal Plane
• Revolution Indicator: Yes

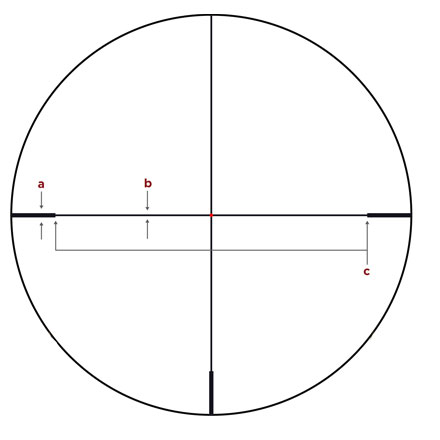

• Reticle: Illum. FireDot 4 Fine
• Windage Adjustment Type: Pop-Up Rezero
• Weight: 22.2oz.
• Elevation Adjustment Value per Click: 1cm @ 100m
• Elevation Adjustment Range (MOA): 75
• Elevation Adjustment Range (MIL): 22
• Elevation Adjustment Range: 218cm @ 100m
• Elevation Adjustment Per Revolution: 80CM @ 100M
• Elevation Dial Travel Limit: 15.2MIL
• Windage Adjustment Value per Click: 1cm @ 100m
• Windage Adjustment Range (MOA): 75
• Windage Adjustment Range (MIL): 22
• Windage Adjustment Range: 218cm @ 100m
• Windage Adjustment Per Revolution: 80cm @ 100m
• Magnification Max: 15
• Magnification Min: 3
• Objective Lens Diameter: 56mm
• Linear FOV Low Mag: 38.3' @100 yds
• Linear FOV High Mag: 7.7' @100 yds
• Angular FOV Low Mag (Degrees): 7.3
• Angular FOV High Mag (Degrees): 1.5
• Eye Relief Low Mag: 3.7"
• Eye Relief High Mag: 3.8"
• Minimum Parallax-Free Distance: 50 yds
• Battery Life: Low Intensity: 1600 hrs
• Battery Life: Medium Intensity: 1000 hrs
• Battery Life: High Intensity: 300 hrs
• Number of Illum Settings: 8
