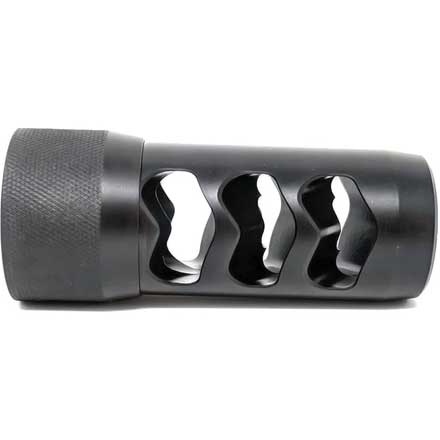

Hellfire Self Timing Muzzle Brake 7mm/30cal Black Nitride 5/8-24
by AREA 419
Product Overview:
The Area 419 Hellfire Self Timing Muzzle Brake was designed to offer the greatest performance possible while maintaining shooter comfort. The Hellfire Self Timing Brake system is not just another knockoff copy of existing self timing brakes. It was engineered from the ground up to be extremely effective, easier to install, and much more versatile. The Area 419 Hellfire Self Timing Brakes are extremely easy to install - the brake will NOT turn as you torque the collar! The simple, round, knurled nut requires no tools when timing your Brake.
Features Rearward facing ports for the ultimate in recoil reduction. Independently tested side by side with the best brakes on the market. The HELLFIRE showed 52% recoil reduction on a 6.5 Creedmoor test rifle. This is ~4% more than the one of the most popular brakes on the market.
Removal of your brake for cleaning and maintenance will not shift your zero when re-installing. Simply torque the universal adapter onto your barrel with a 5/8" wrench, this piece never has to come off. Next, left hand thread the brake/collar assembly onto the adapter until it is almost snug. Then, you will rotate the brake until it is level, push the brake into the adapter, and you will feel it lock onto the taper. Fully tighten the collar by hand, and you are finally done!
Caliber Selection:
In order to simplify the choices, Area 419 has four caliber selections available for the Hellfire Self Timing Muzzle Brakes. The difference in efficiency between using a caliber specific brake bore, and the next size up is so minimal, if not non existent, that Area 419 decided to simplify things in order to lower overall costs to you, the consumer.
- 223/6mm - Good for any bullet caliber up to and including 0.243 (6mm), 223, 5.56 NATO, 204, 17 caliber, etc.
- 6.5mm - Good for any bullet caliber up to and including 0.264 (6.5mm), ie 257, (Magnums OK)
- 7mm/308 - Good for any bullet caliber up to and including 0.308, ie 7mm, 284, 270, (Magnums OK)
- 338 - Good for any bullet caliber up to and including 0.338, ie 338WM, 338LM, 338NM, 338 Edge.
Specifications And Features:
- Rearward facing ports for the ideal balance of Recoil Reduction and Shooter Comfort
- Proprietary port design controls muzzle rise without the use of top porting
- Brake is engraved with caliber to indicate the top for correct orientation, and a horizontal line to aid in leveling
- Made from heat treated 17-4PH Stainless Steel
- Black Nitride or Raw Stainless finish - Universal Adapters are also Black)
- 1 inch OD Brake, 1.1 inch OD collar - Meets 3-Gun Standards for Limited Class
- Brake assembly will add 2.6 inches from the thread shoulder - Approximately 2 inches added to OAL of barrel
